Downdraft Tables

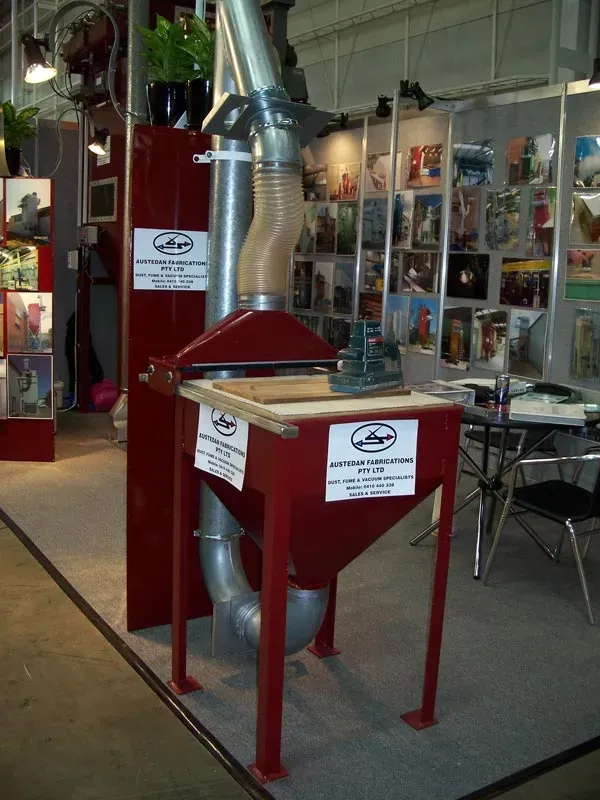

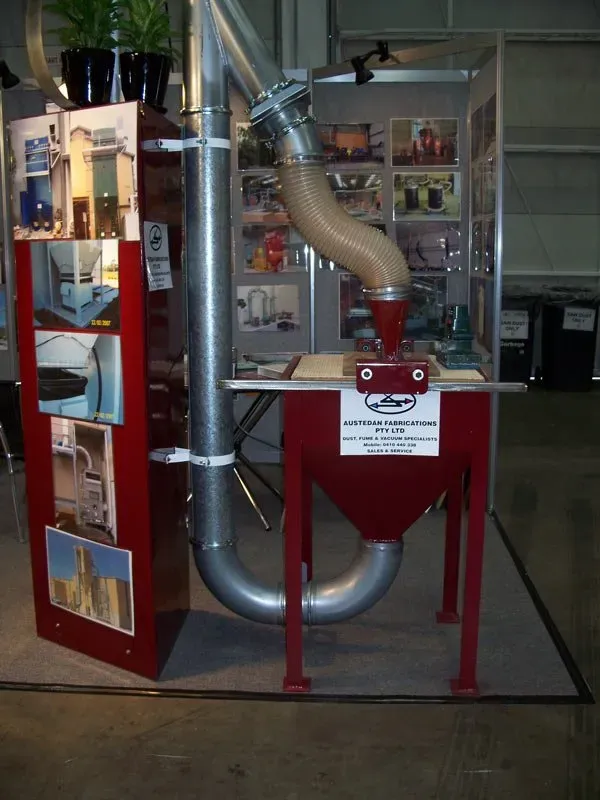

Customisation and Installation of Downdraft Tables

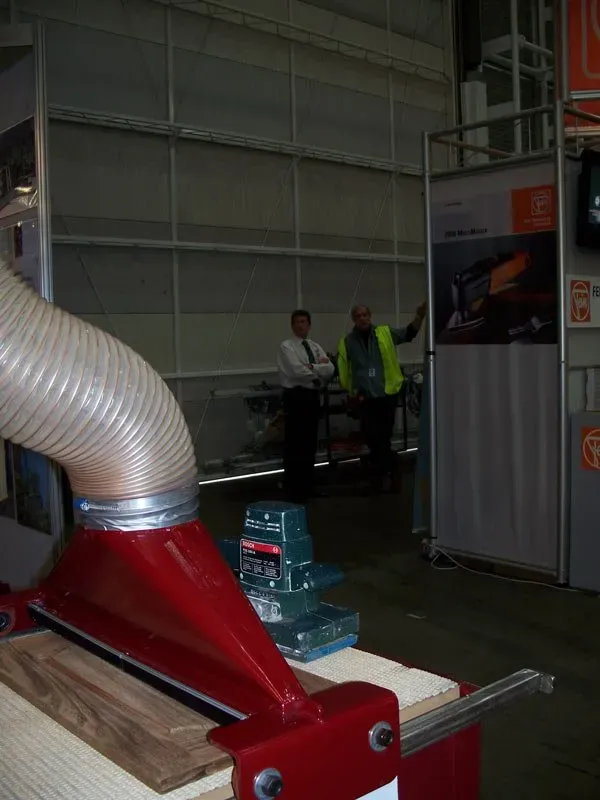

We have recently customised and fabricated a traveling top sweep extraction hood to suit out tables - this gives the ability to clean the top of sanding jobs without blowing the dust everywhere. The top sweep travels over sanding job removing dust from the surface and grooves which is then extracted directly into a waste bin via a dust collection unit.

Top working area consists of specially customised and routered craftwood c/w non-slip matting so as to grip jobs and allow good extraction to breathe through the soft top material.

In most cases on larger flat jobs, the down draft is able to hold down the material for router/sanding purposes with no need for clamps as long as the recommended amount of extracted air is supplied to each table.

Down Draft Table Sizes

Model # AF-ADD-25

Size: 0.5 x 0.50

Minimum volume of air: 900m3h

Exhaust duct size: 120ø

Approximate velocity: 22m/sec

Model # AF-BDD-36

Size: 0.6 x 0.60

Minimum volume of air: 1,295m3h

Exhaust duct size: 140ø

Approximate velocity: 23m/sec

Model # AF-CDD-72

Size: 1.2 x 0.60

Minimum volume of air: 2,592m3h

Exhaust duct size: 200ø

Approximate velocity: 23m/sec

Model # AF-DDD-112

Size: 1.5 x 0.75

Minimum volume of air: 4,050m3h

Exhaust duct size: 250ø

Approximate velocity: 23m/sec

Model # AF-EDD-162

Size: 1.8 x 0.90

Minimum volume of air: 5,832m3h

Exhaust duct size: 300ø

Approximate velocity: 23m/sec

Model # AF-FDD-200

Size: 2.0 x 1.00

Minimum volume of air: 7,200m3h

Exhaust duct size: 325ø

Approximate velocity: 24m/sec

Model # AF-GDD-288

Size: 2.4 x 1.20

Minimum volume of air: 10,368m3h

Exhaust duct size: 400ø

Approximate velocity: 23m/sec
